Description

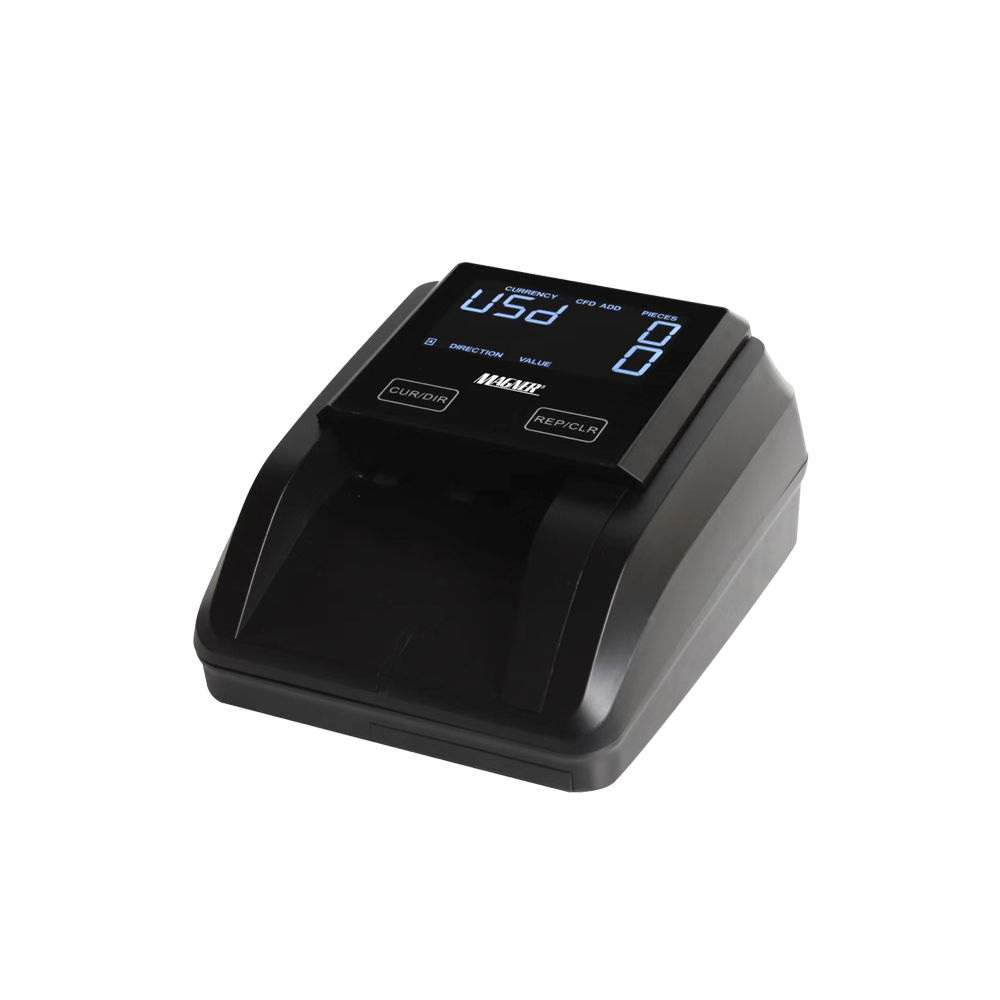

MAGNER 215
BANKNOTE DETECTOR
The Model 215 Super Detector represents Magner’s long-standing commitment to delivering unmatched counterfeit detection and manufacturing quality. Equipped with an innovative operating system and 10+ advanced detection sensors with proprietary technology, the Magner 215 verifies multiple currencies with high accuracy. It processes up to 100 notes per minute, accepts notes in any orientation, and provides easy navigation through its modern touch-screen and large LCD display. With up to 5 hours of battery life and USB connectivity for software upgrades, the Magner 215 ensures secure and reliable counterfeit detection.
General Characteristics
| Feature |
Description |
| Applicable Currencies |
Maximum 8–9 currencies |
| Detecting Speed |
< 0.5 seconds per piece |
| Hopper Capacity |
1 note inserted at a time |
| Stacker Capacity |
N/A |
| Reject Capacity |
N/A |
| Feed System |
Friction Roller, narrow side first |
| Display |
3.3-inch LCD Screen |
Currency Specifications
| Feature |
Description |
| Denomination Detection |
UV, MG, IR |
| Currency Thickness |
0.03–0.15 mm |
| Currency Size |
Width: up to 185 mm, Height: Any |
| Dimensions |
155(W) × 137(D) × 82(H) mm |
| Weight |
Net: 0.5 kg |
Power & Battery
| Feature |
Description |
| Power Supply |
AC 100–240V, 50/60Hz or DC 12V/1.0A |
| Battery |
Up to 5 hours per charge, Rechargeable Li-ion 11.1V / 500mAH |
Detection & Connectivity
| Feature |
Description |
| Counterfeit Detection Technologies |
UV (Ultraviolet), MG (Magnetic), IR (Infrared), Antistokes Control, Spectral Paint Analysis, Paper Quality Analysis, Dimensional Banknote Analysis, Optical Density Control |
| Connectivity |
USB (Software Upgrade) |
MAGNER 215
DownloadThe MAGNER 215 Super Detector is a high-performance multi-currency counterfeit detector featuring 10+ advanced sensor technologies, ultra-fast detection under 0.5 seconds, and a clear 3.3-inch LCD display. It accepts notes in any orientation, offers up to 5 hours of battery operation, and supports USB upgrades to stay updated against future counterfeits. Compact, reliable, and highly accurate—ideal for banks, exchange companies, retail, and cash-handling environments
