Description

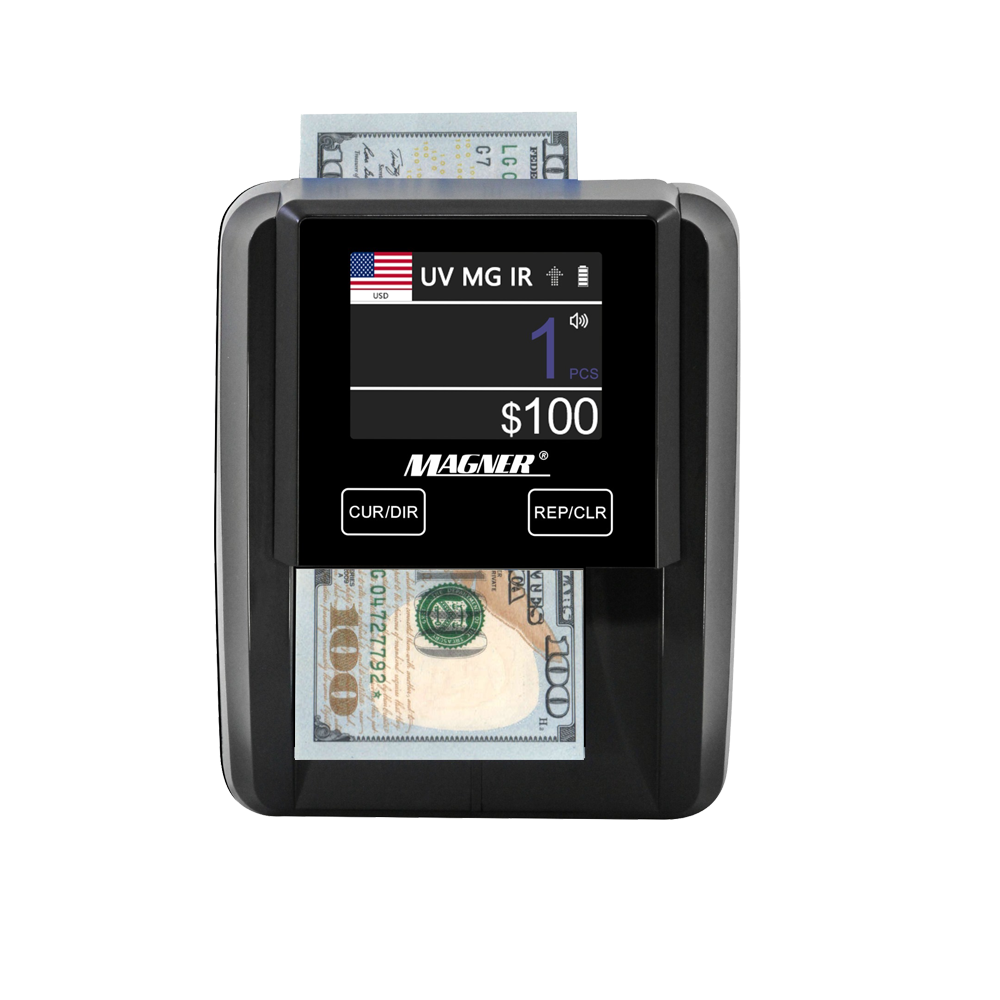

MAGNER 216
BANKNOTE DETECTOR
The MAGNER 216 Super Detector continues Magner’s long-standing commitment to delivering highly reliable counterfeit detection and exceptional build quality. Designed with advanced multi-sensor technology and modern usability features, the Magner 216 is a powerful, portable, and accurate solution for detecting forged banknotes.
Using an innovative operating system that includes 10+ independent detection sensors along with proprietary analysis technology, the Magner 216 provides fast and safe authentication of banknotes across multiple currencies. It can process banknotes automatically at speeds of up to 100 notes per minute, accepting notes in any orientation, making it convenient and user-friendly.
The device features a large LCD display and intuitive touch-based navigation, allowing users to operate functions quickly and easily. With a rechargeable battery offering up to 5 hours of continuous use, it is ideal for mobile operations. The integrated USB port ensures easy software upgrades to support future currency updates and newly emerging counterfeit threats.
Technical Specifications
| Feature | Description |
|---|---|
| Applicable Currencies | Supports up to 8–9 major currencies |
| Detecting Speed | < 0.5 seconds per note |
| Processing Capacity | Automatically checks up to 100 notes/minute |
| Hopper Capacity | Single-note insertion |
| Stacker Capacity | N/A |
| Reject Capacity | N/A |
| Feed System | Friction roller, narrow side first |
| Display | 3.3 inch LCD screen display |
Currency Handling
| Feature | Description |
|---|---|
| Denomination Detection | UV, MG, IR |
| Thickness Range | 0.03 – 0.15 mm |
| Currency Size Support | Width: up to 185 mm • Height: any size |
| Dimensions (L × W × H) | 155 × 137 × 82 mm |
| Net Weight | 0.5 kg |
Power & Battery
| Feature | Description |
|---|---|
| Power Supply | AC 100–240V, 50/60Hz or DC 12V/1.0A |
| Battery | Rechargeable lithium battery (11.1V / 500mAh) |
| Battery Life | Up to 5 hours per charge |
Counterfeit Detection Technology
Includes advanced multi-layer detection:
-
UV (Ultraviolet)
-
MG (Magnetic ink detection)
-
IR (Infrared analysis)
-
Antistokes detection
-
Spectral ink analysis
-
Paper quality analysis
-
Dimensional analysis of banknotes
-
Optical density control
-
Proprietary Magner multi-sensor verification (10+ checks)
Connectivity
-
USB port for software upgrades and future counterfeit updates.
